Features:

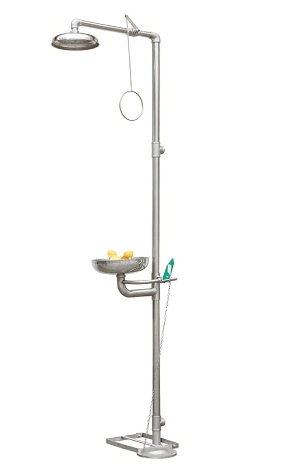

- Eye Washer SS-S100
- Controlled, low velocity flow and uninterruptible water supply at 3gpm
- Shower can provide 76L of water per minute
- Eye washer unit deliver 11.5L of water per minute
- Valve actuator are easy to locate readily accessible to user
- Handsfree stay open valve activate within one second
- Shower Head: 8″ diameter head.
- Shower Valve: 1″ IPS Stainless Steel ball valve.
- Eye Wash Valve: 1/2″ IPS Stainless Steel ball stay-open ball valve.
- Eye Wash Bowl: 11-1/2″ diameter ABS plastic bowl.
- Supply: 1-1/4″ NPT female inlet.
- Waste: 1-1/4″ NPT female outlet.
- Spray Head Assembly: Two spray heads, each head has a dust cover, internal flow control, and filter to remove impurities from water flow.
- Pipe and Fittings: Schedule 1-1/4″,1″ 1/2″ galvanized steel.
Weight 18 kg
Dimensions 91 × 41 × 30 in
Colors Silver
Materia lStainless Steel
Origin China
Packing – Carton 1 Piece
Eye Washer SS-S100, Combination of Eye Washer & Safety Shower, Stainless Steel
SKU’s
Combination of Eye Washer & Safety Shower, Stainless Steel, Model: SS-S10
Features:
Eye Washer SS-S100
Controlled, low velocity flow and uninterruptible water supply at 3gpm
Shower can provide 76L of water per minute
Eye washer unit deliver 11.5L of water per minute
Valve actuator are easy to locate readily accessible to user
Handsfree stay open valve activate within one second
Shower Head: 8″ diameter head.
Shower Valve: 1″ IPS Stainless Steel ball valve.
Eye Wash Valve: 1/2″ IPS Stainless Steel ball stay-open ball valve.
Eye Wash Bowl: 11-1/2″ diameter ABS plastic bowl.
Supply: 1-1/4″ NPT female inlet.
Waste: 1-1/4″ NPT female outlet.
Spray Head Assembly: Two spray heads, each head has a dust cover, internal flow control, and filter to remove impurities from water flow.
Pipe and Fittings: Schedule 1-1/4″,1″ 1/2″ galvanized steel.
Standards
EN 15154-1:2006, EN 15154-2:2006
